1. Operating current function:
The door can only be opened if the power is switched on. The door remains locked in the event of a power failure.
2. Standby function:
The door opener is locked if the power is switched on. If the power is switched off and there is a power failure,
the door can be opened.
Door openers with feedback have a zero-potential contact that has to react to the door positions open and
closed. The contact can be used for monitoring functions.
4. Latch adjustment:
A door opener with FAFIX has an adjustable and fixable door opener latch. This makes it possible for the door opener latch to be aligned with the lock latch after installation. Expansion compensation possible at any time by realigning the door opener.
In line with the pertinent safety regulations, such as the accident prevention regulations etc., an emergency release mechanism must also be fitted for exit checks. When using door openers with standby current, an emergency release mechanism is not required, because the door is automatically unlocked in the event of a power failure.

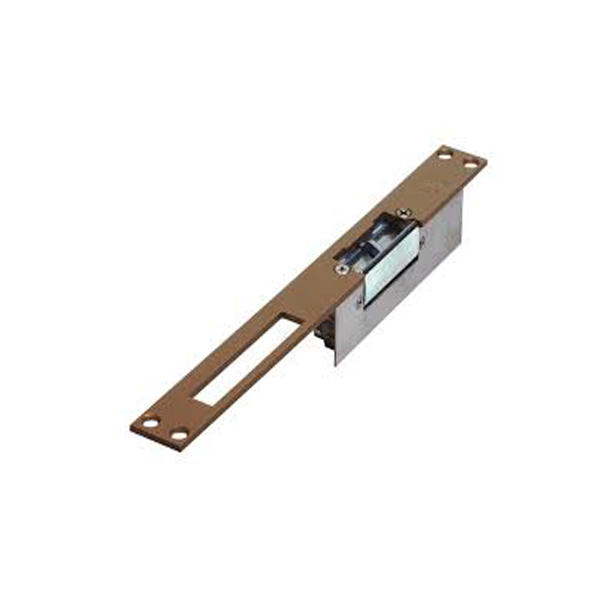

Dimensions (H x W x D): 250 mm x 25 mm x 28 mm
Edge plate color: Gold hammered finish
Voltage: 12 V =
Current consumption: 0.2 A
Continuous operation: 100% duty cycle
Protective switch: Anti-surge diode
Push-on pressure resistance: 650 kp
Feedback contact: Zero-potential, max. 42 V/1 A
