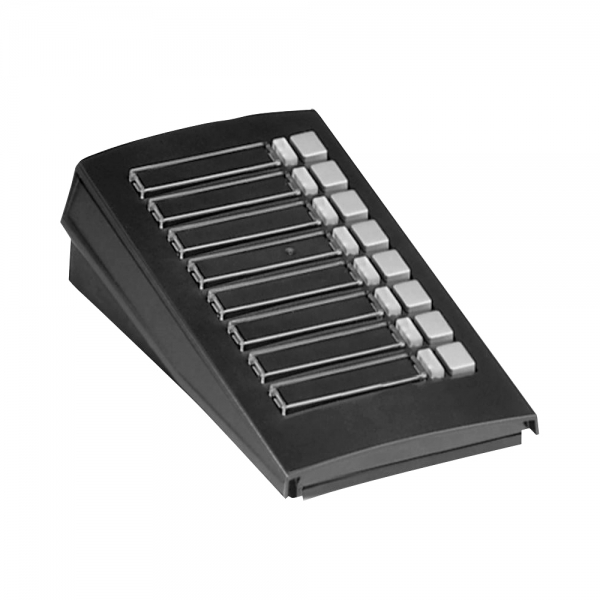

The call station keypad is used in combination with the call station basic to make manual or pre-recorded announcements to any assigned zones, to select the zones or to execute pre-defined actions. The call station keypad has eight programmable buttons, each with a two-color status LED.
The keys of the call station keypad can be programmed for actions, such as:
• Controlling functions: selection recall, call activation,cancel selection, BGM off, BGM volume control, fault acknowledgement, etc.
• Selecting sources: BGM channel, pre-recordedmessages, attention and alarm tones
• Selecting destinations: zones and zone groups
The keys can be programmed for different modes of operation, such as momentary or toggle. Each key has one two-color status LED beside it. Beside each LED is a transparent,removable tab that can hold a function or zone label for the key. Safety covers to prevent accidental activation of the keys are available as an option.
Eight freely programmable selection keys u Serial data and power interface to call station basic u Up to 16 keypads can be connected to one call
Activation indicator for each key
Stylish and modern design
The keypad gets its power from the call station it is connected to.
Controls and indicators
• Eight function keys
• Eight two-color LEDs
• Two serial data and power connections
